Custom honeycomb board box — made to order: size, core thickness and internal fitments are all specified per run.

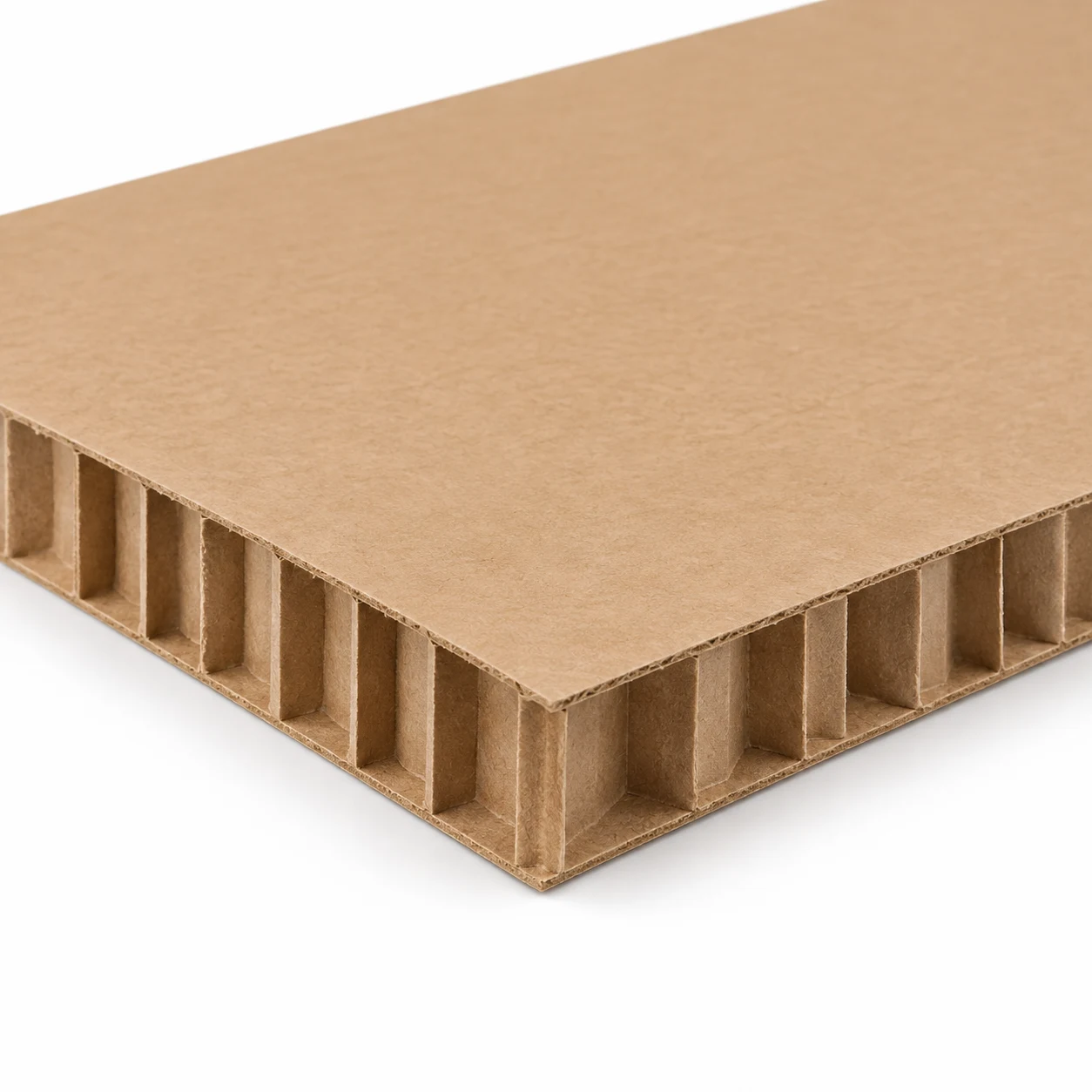

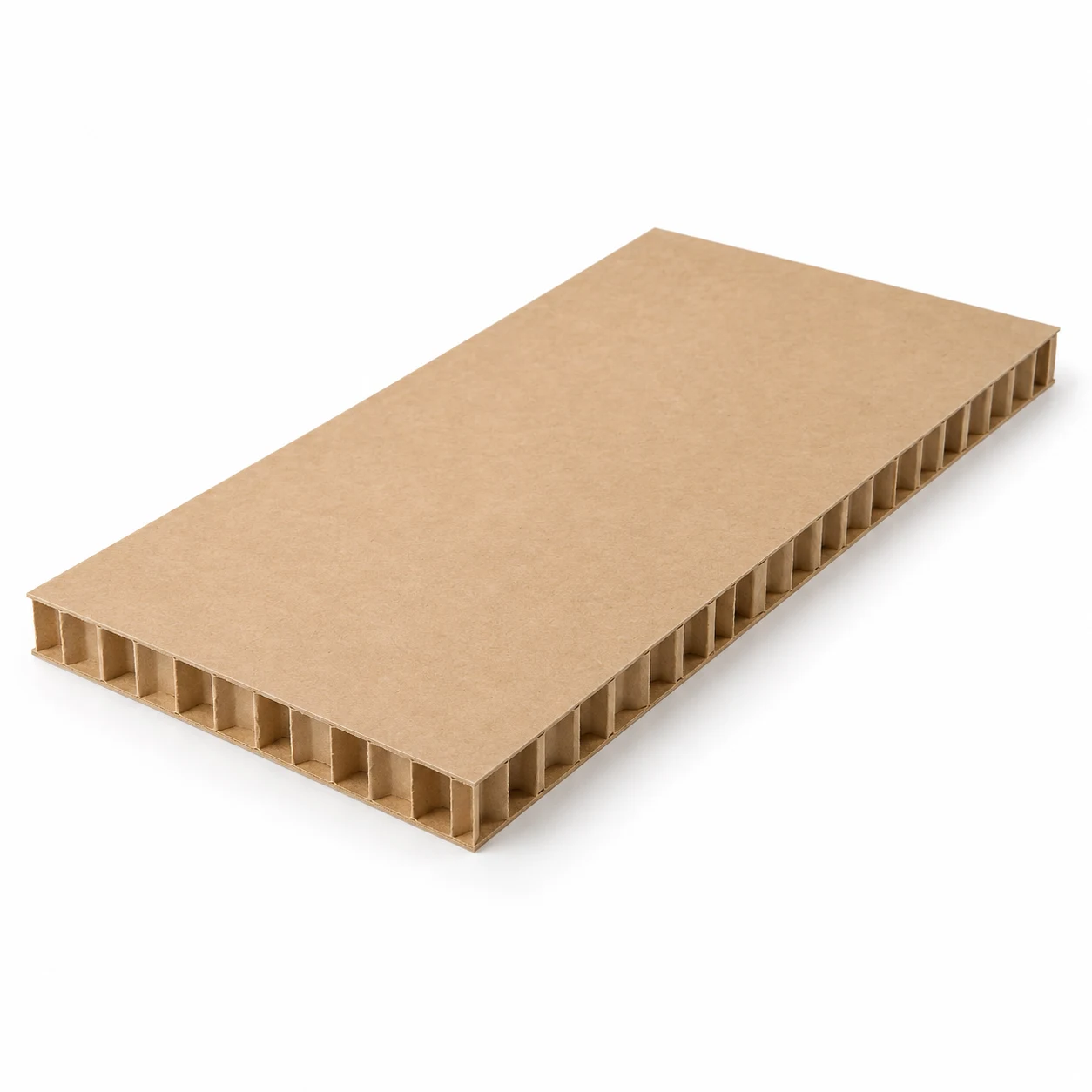

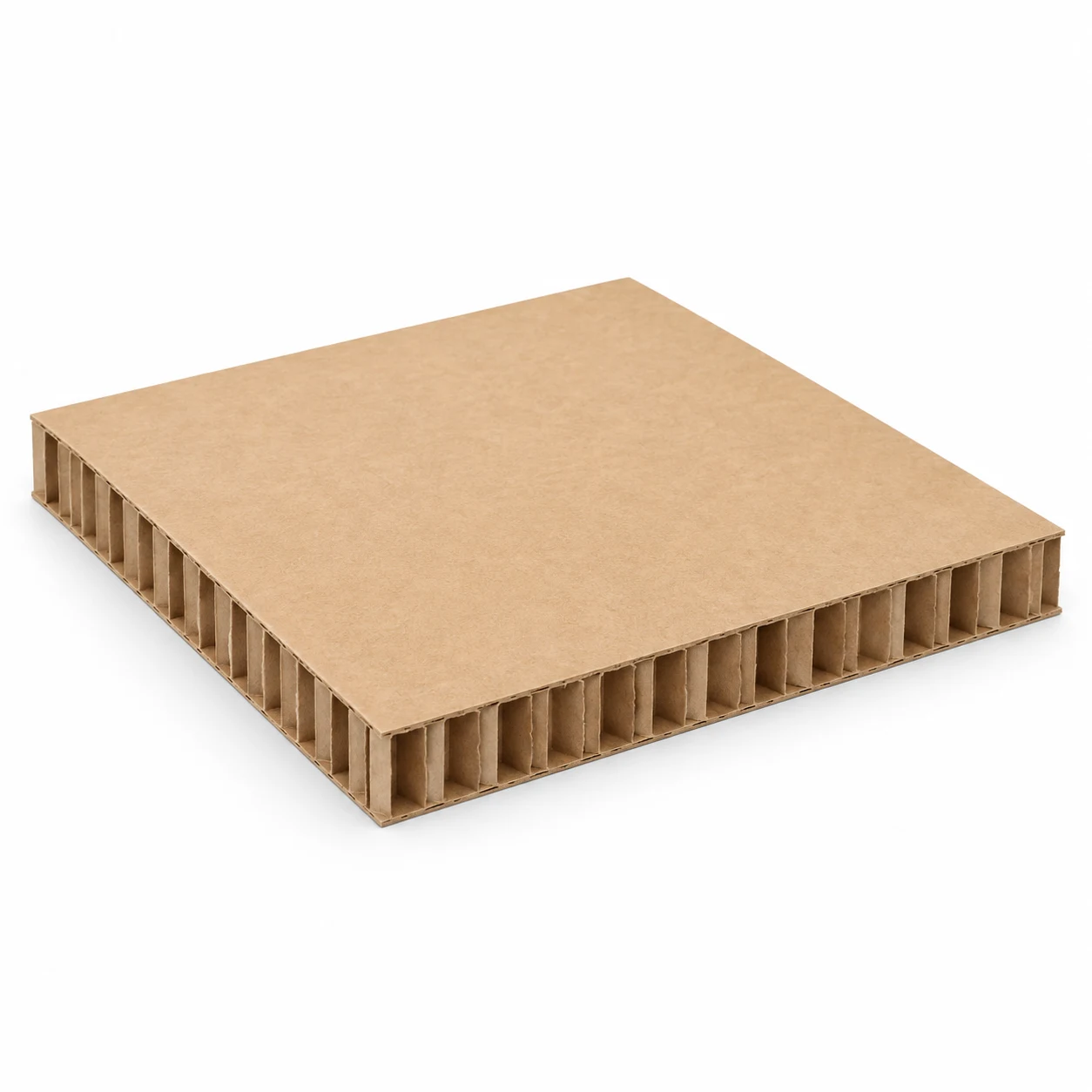

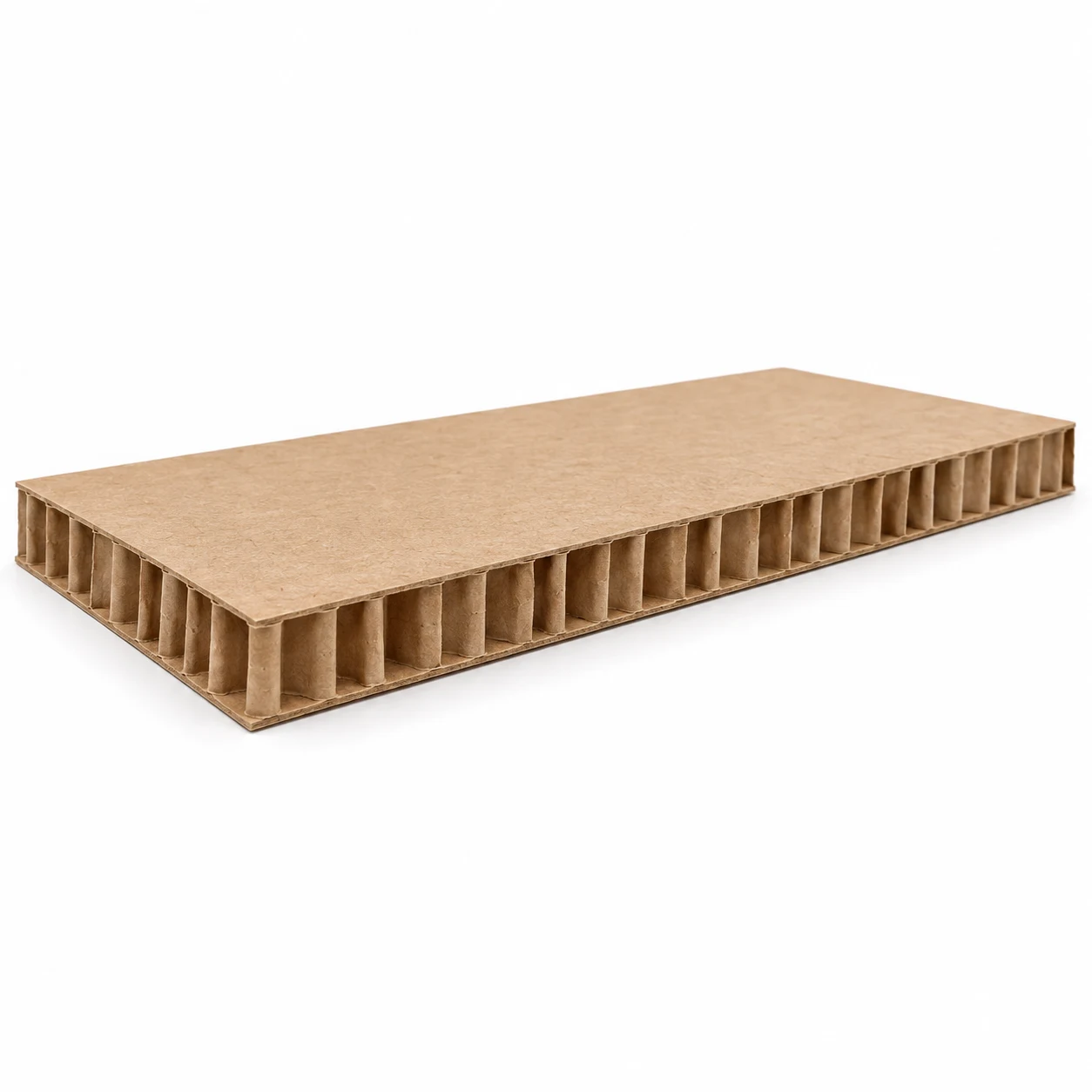

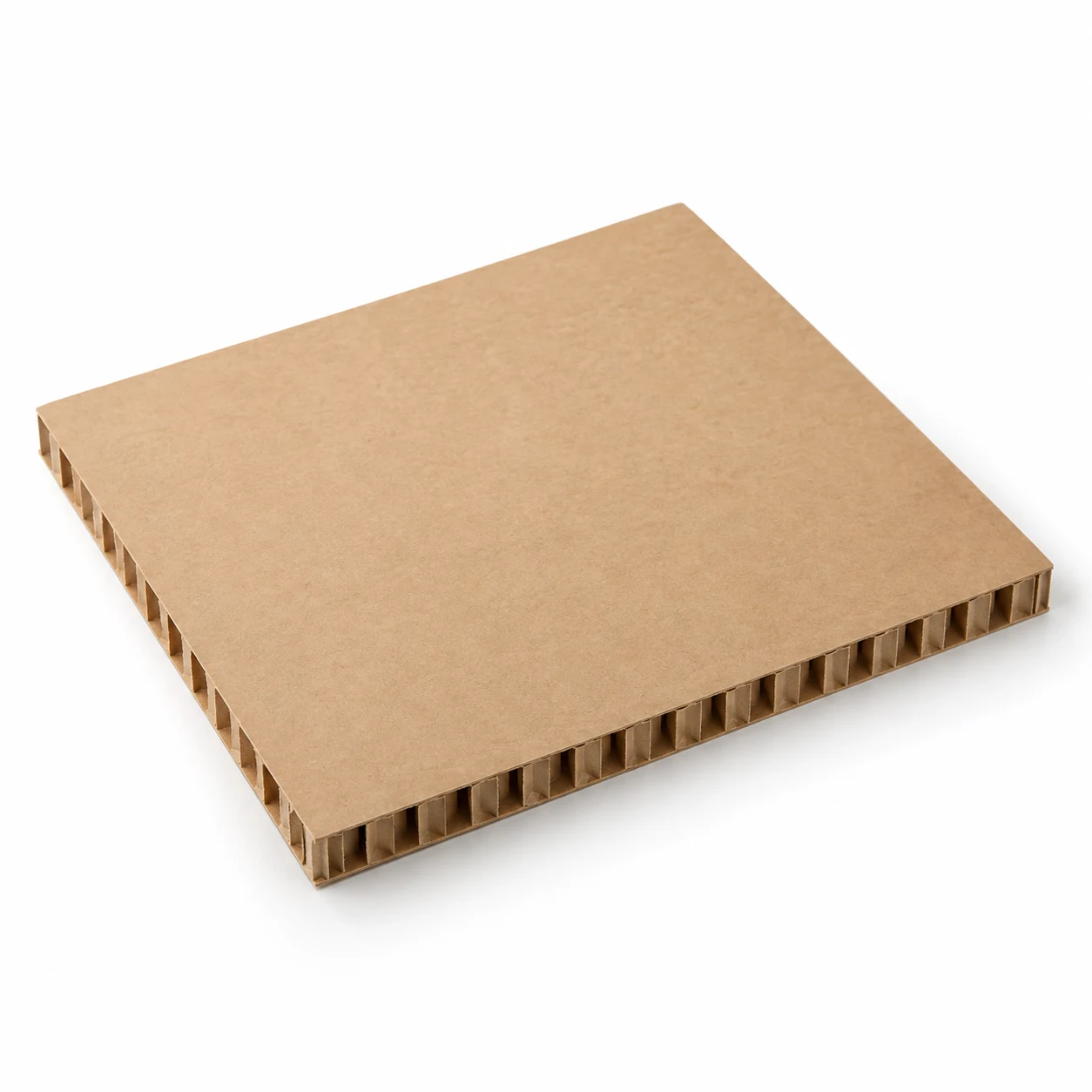

Paper honeycomb is the same structure as an aircraft floor panel, made of kraft: a cellular core between two flat faces, where the cells carry compression far better than solid board of the same weight. It gets close to timber strength at a fraction of the mass, it is fully recyclable, and it needs no fumigation certificate to cross a border.
Where it replaces timber
Premium products, precision instruments and export packaging where weight is being paid for by air, or where the customer wants the crate to be recyclable at the other end. Compression strength rates 4 of 5 — below solid timber, above ordinary corrugated. Core thickness is the variable that sets it: a thicker core resists bending and crushing proportionally, so the specification follows the load and the span rather than the box size.
Ordering
Size, core thickness and internal fitments are made to order, board faced and edge protected as required. Internal fitments are where honeycomb earns its place — the same material cuts into cradles and dividers that hold a component precisely, which foam would do more heavily and timber more expensively. For the heaviest loads, wooden case and pallet; for ordinary freight, the heavy-duty carton.
What moves the price
Core thickness, facing and fitments. A thicker core costs more and carries proportionally more, so the specification follows the load and the unsupported span rather than the outer dimensions. Internal fitments cut from the same material are where most of the value is and where most of the cost is. Against timber it is usually cheaper delivered once freight and fumigation are counted; against corrugated it is a clear step up.
Where it goes wrong
Specifying it by outer size rather than by load and span, which produces a box that looks substantial and bends in the middle. The second is exposure to damp without edge protection or a suitable facing — it is a paper product and behaves like one. The third is using it where timber was genuinely needed, which is the mirror of the previous product’s mistake and just as expensive.
Where custom honeycomb board box is used
Premium products, precision instruments and export packaging where weight is paid for by air or the crate has to be recyclable at the other end. It sits between the heavy-duty carton and timber on strength, and it needs no fumigation certificate — see export packaging compliance. Its internal fitments are usually what justify it over a stronger, heavier alternative.
What to send us for a quotation
A quotation for custom honeycomb board box is written against a specification, so the more of this you can send, the closer the first number is to the real one: which structure, or the shelf life and the product so we can choose one — Honeycomb board are available here; the temperature the pack has to survive, from filling through to how the customer opens it (ambient for this product); the line it runs on — this one is specified for die cutting and Strapping and wrapping; which options you want fitted: board faced, Edge protected and With internal fitments; the values for size, Core thickness and Internal fitments.
Send the fill weight and the quantity with it. Where you already buy something similar, a sample is worth more than a description — we measure what is actually there rather than quoting against how it was once written down.
Food-contact and export requirements are set out in ISPM 15, the international standard for wood packaging crossing a border; the declarations for this structure are issued with the order.
